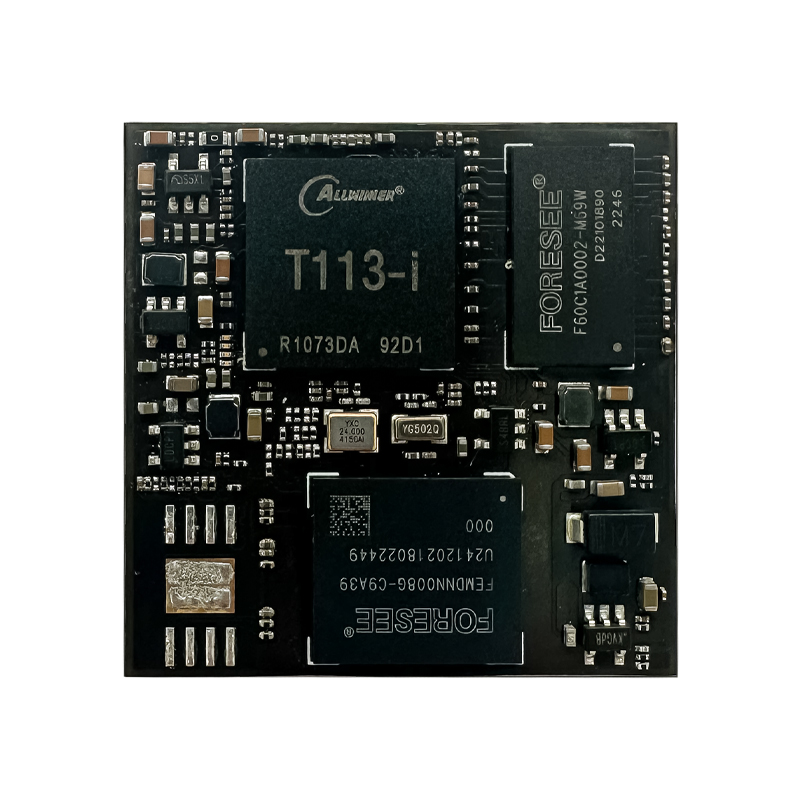

T113-i-LB168 Core Board Resource Introduction

Multi-core Processing

Dual-core Arm® Cortex®-A7, up to 1.2GHz
Xuantie C906 real-time coprocessor, handling both general-purpose computing and real-time control
Dedicated Multimedia Processing Unit

Connectivity

Single 100Mbps Ethernet
Multiple USB
CAN
6-channel UART
SPI
I2C
ADC
PWM

Camera Interface

Dual MIPI CSI Camera Interfaces

Video Encoding/Decoding

Supports multiple 1080P video encoding/decoding channels

Memory

128MB / 256MB / 512MB (optional)

Storage

eMMC 8GB / 16GB / 32GB

Packaging and Dimensions

10-layer 2nd-order blind buried gold PCB

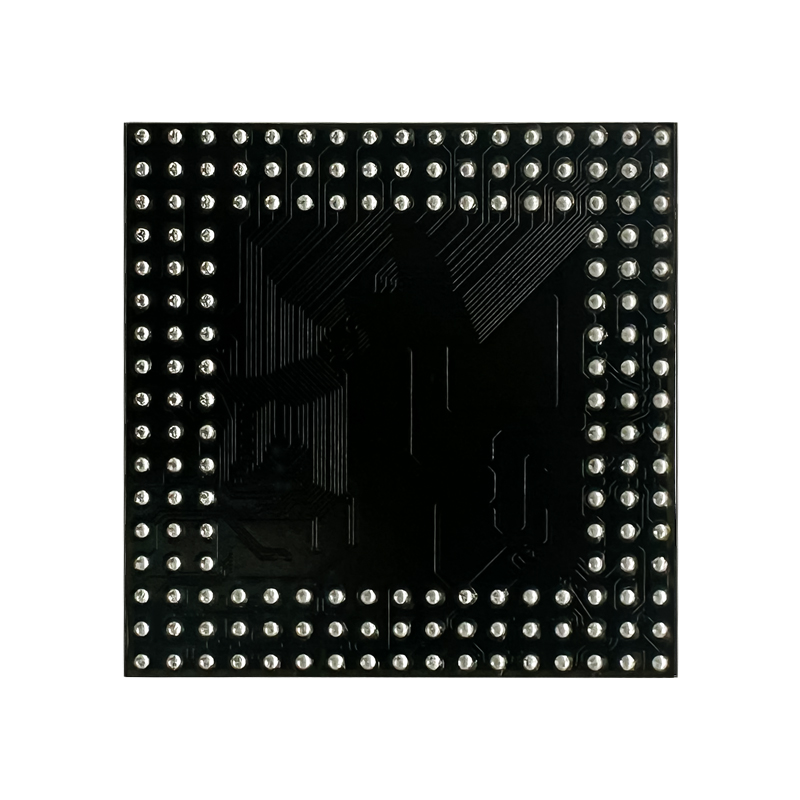

LGA surface mount package, shockproof and dustproof, no additional adapters required
34.99mm × 34.99mm, compact size

Temperature Range

-40℃ ~ 85℃ (Industrial Wide Temperature Range)

Reliability

Passed a full suite of reliability tests including high and low temperature cycling, power fluctuation, and ESD

Supports 24/7 continuous stable operation

Original manufacturer guarantee with over 10 years of long-term supply

Application Areas

Smart gateways, rail transit equipment, power energy terminals

security monitoring, home HMIs, handheld terminals

lightweight industrial and consumer embedded devices
