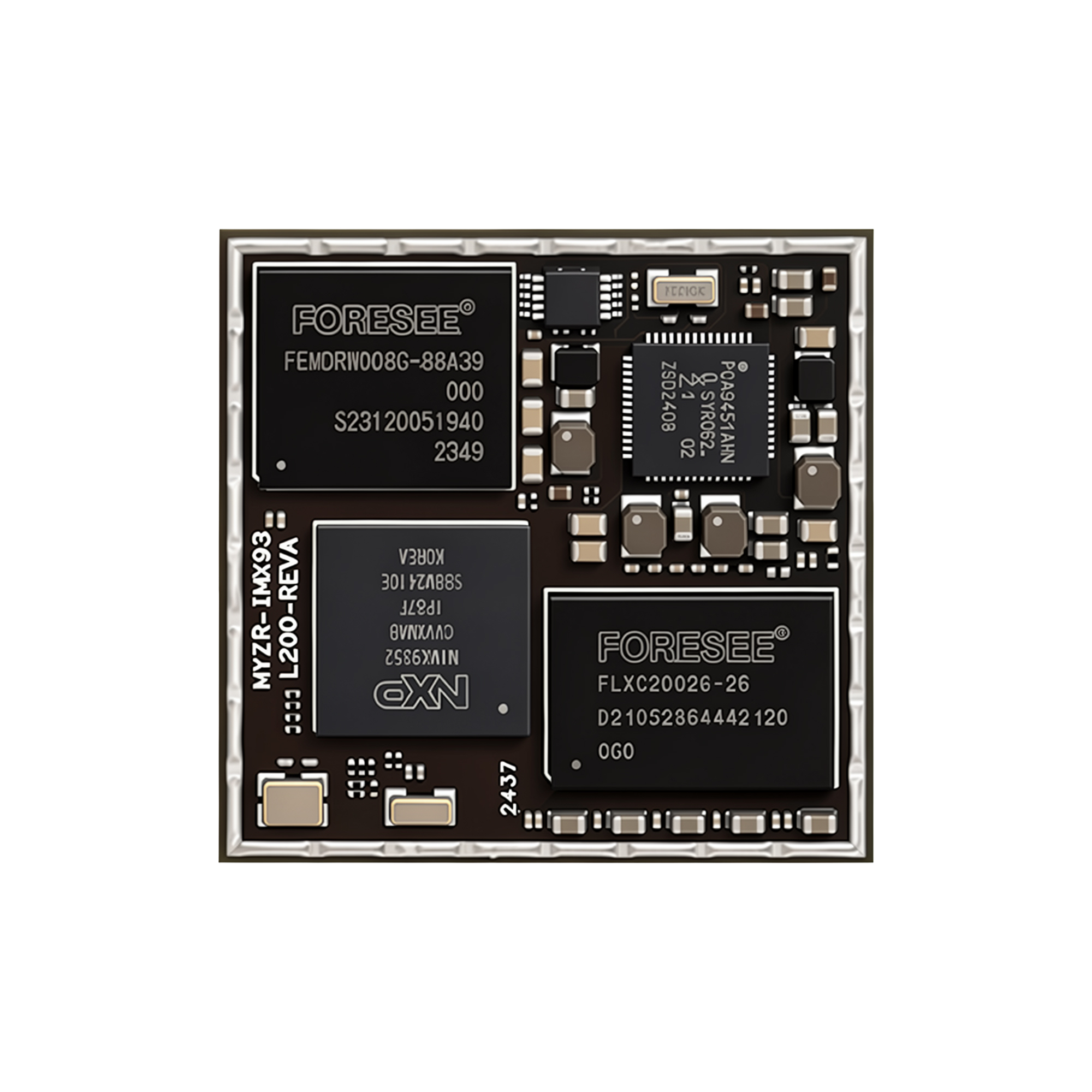

Core Board Resources

Multi-core Processing

– 1-2 Arm® Cortex®-A55 cores, 1.7GHz clock speed

– Arm Cortex-M33 @ 250MHz

– Arm® Ethos™ U-65 microNPU

– EdgeLock® secure zone

Connectivity

– Two USB 2.0 Type-C ports with PHY

– Two Gigabit Ethernet ports: AVB & IEEE 1588 for synchronous mode, EEE for low-power mode 1 TSN support

– 2 CAN FDs

– 8 UARTs, 8 I2Cs, 8 SPIs, 2 I3Cs

– 1 4-channel 12-bit ADC

– Two 32-pin FlexIO interfaces (camera, bus, or serial I/O)

External Memory

– Up to 3.7GT/s x16 LPDDR4/LPDDR4X (with inline ECC)

– 3 SD 3.0/SDIO3.0/eMMC5.1

– 1 8-wire SPI supporting SPI NOR and SPI NAND memory
Graphics

– Hardware combiner for blending/compositing, resizing, and color space conversion

Display Interface

– 1 1080p60 MIPI-DSI (4 channels, 1.5Gbps per channel) with PHY

– 1 720p60 LVDS (4 channels)

– 24-bit parallel RGB

Camera Interface

– 1 1080p60 MIPI-CSI (2 channels, 1.5Gbps per channel), with PHY

– 8-bit parallel YUV/RGB

Audio

– 7 I2S TDM (32-bit @ 768kHz), SPDIF Tx/Rx

– 8-channel PDM microphone input

– MQS: Medium quality sound output (Σ-Δ modulator)

Operating System

– Linux® Operating System

– FreeRTOS

Temperature Range

– -40 to 125°C

Memory

– LPDDR4/4X 2GB

Storage

– EMMC 8G/16G
